LEDA FLEX™ H20 BEAM SLAB FORMWORK SYSTEM

Technical System Overview
& User Manual Content

LEDA FLEX™ is a versatile prop-supported slab formwork system designed for flat slab construction and shoring applications across commercial, residential, infrastructure, and civil engineering projects.

Include Services

SYSTEM OVERVIEW
  • LEDA FLEX™ is a versatile prop-supported slab formwork system designed for flat slab construction and shoring applications across commercial, residential, infrastructure, and civil engineering projects.
  • Using only five main components, the system is designed for fast and efficient assembly, helping to reduce operational time and optimise labour efficiency on site.
  • LEDA FLEX™ provides excellent adaptability for a wide range of slab applications due to overlapping beam arrangements, flexible prop positioning, and adjustable support layouts.
  • The system allows props to be positioned freely along the main beams, providing maximum flexibility for different slab geometries and loading requirements.
LOAD-BEARING CAPACITY
  • Suitable for slab thicknesses up to 500 mm.
  • Maximum formwork height up to 6.0 m, depending on engineering design and site requirements.
KEY SYSTEM ADVANTAGES
  • Minimal number of components for faster assembly.
  • Quick erection, stripping, and dismantling operations.
  • Reduced operational costs through high reusability.
  • Galvanized or powder-coated components available for long service life.
SYSTEM ADAPTABILITY
  • Suitable for varying slab layouts, irregular geometries, transfer slabs, and different slab thicknesses.
  • Efficient use across commercial, residential, and infrastructure construction projects.

LEDA FLEX™ H20 BEAM

LEDA FLEX™ is a versatile prop-supported slab formwork system.
Download Now

Get a Quotation

LEDA FLEX™ is a versatile prop-supported slab formwork system designed for flat slab construction
Projects Done
0 +
EASY HANDLING & PLANNING
  • Fast connection and tightening of accessories and components.
  • Simple beam and prop arrangement.
  • Efficient assembly and stripping operations.
  • Adaptability to architectural concrete slab requirements.
SAFE OPERATION
  • Designed with site safety and operational efficiency in mind.
  • Compatible with handrail systems and edge protection accessories.
  • Supports safe access during erection and dismantling.
SYSTEM IN DETAIL
  • A — Slab Facing: Compatible with plywood, plastic-faced panels, engineered formwork panels, and permanent formwork panels.
  • B — Secondary H20 Beams: Support the slab facing and transfer loads to the primary beam arrangement.
  • C — Primary H20 Beams: Transfer loads into the supporting prop system.
  • D — Lowering Head / Crown Head: Includes integrated quick-lowering function for fast stripping operations.
  • E — Support Head: Used for connecting intermediate props to the primary beam arrangement.

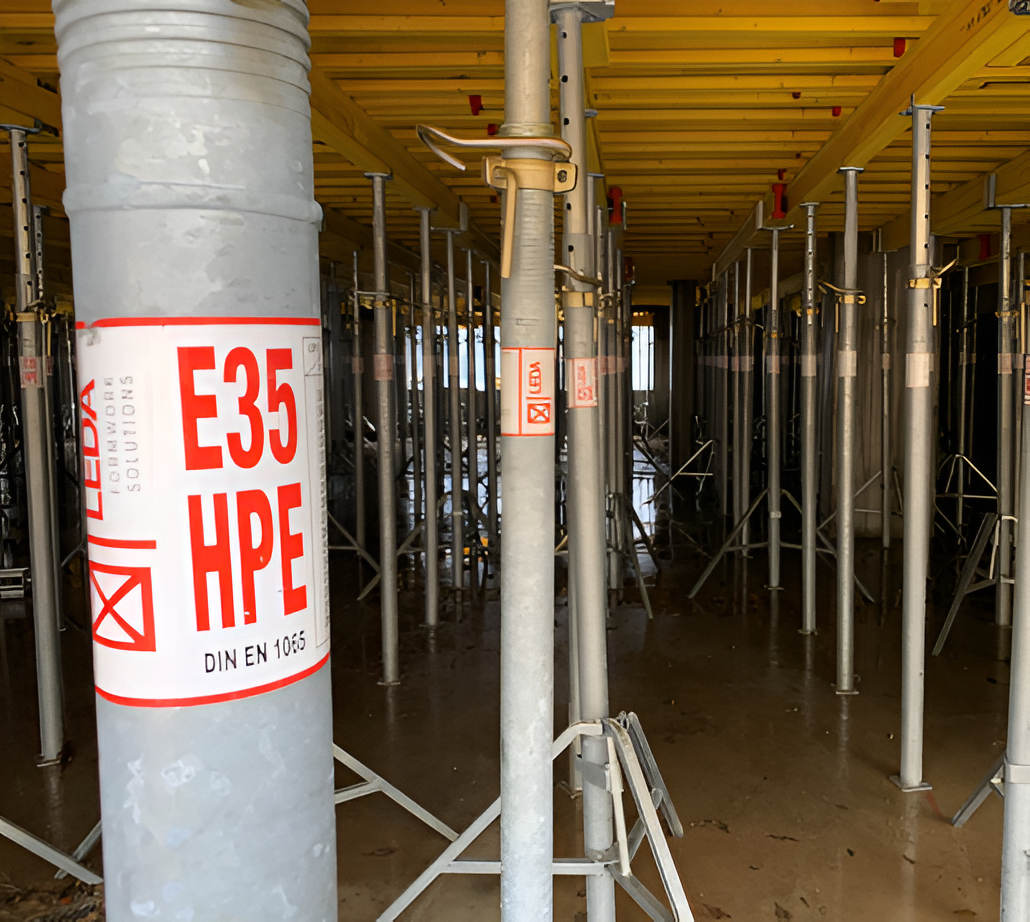

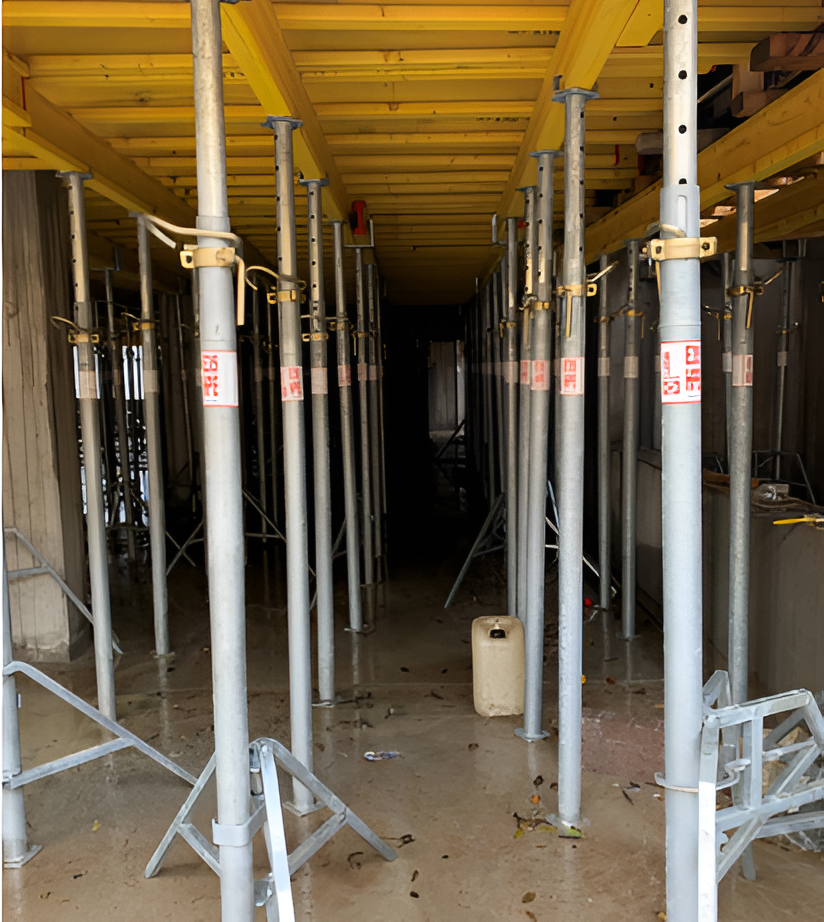

  • F — Supporting Props: Wide range of LEDA props available depending on slab loads and project requirements.
  • G — Removable Folding Tripod: Used to align and stabilise props during assembly and stripping.
GENERAL INSTRUCTIONS
  • This user manual is intended for all personnel involved in the handling, assembly, operation, and supervision of the LEDA FLEX™ system.
  • All personnel must comply with applicable safety instructions, national regulations, and approved site procedures.
  • Damaged or defective components must be removed from service immediately.
WARNING NOTES
  • Permitted fresh concrete pressures must never be exceeded.
  • All connections and components must be inspected regularly.
  • Welding or heating of LEDA Formwork components is strictly prohibited unless officially approved.
  • Formwork must not be struck until sufficient concrete strength has been achieved

Prepared for LEDA Formwork

Engineered Construction Systems
