LEDA RAPID™™

Lightweight Modular Wall & Column Formwork System

LEDA RAPID™ is a versatile lightweight modular steel frame formwork system designed for fast, efficient concrete construction.

System Overview

LEDA RAPID™ is a modern, lightweight, modular steel frame formwork system developed for fast, efficient, and economical concrete construction.

Designed for housing developments, residential buildings, commercial structures, and general reinforced concrete works, LEDA RAPID™™ combines the flexibility of a hand-set system with the strength and durability expected from professional formwork equipment.

The system allows contractors to achieve high productivity with reduced labour requirements while maintaining excellent concrete finishes and fast construction cycles.

Its lightweight design enables panels to be manually handled on site without the need for a crane, making it ideal for residential projects, low-rise developments, and projects where crane access is limited.

Key Benefits

Lightweight Hand-Set System

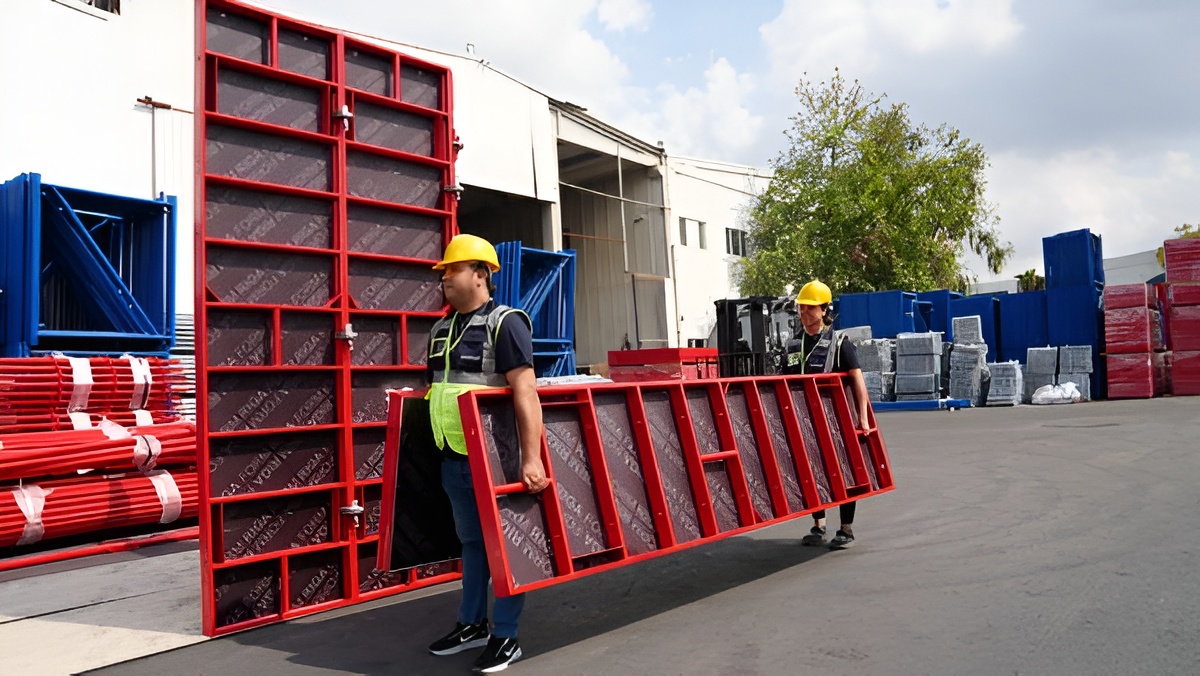

LEDA RAPID™™ panels are designed to be handled manually by site operatives, reducing dependence on cranes and allowing faster erection and dismantling.

Fast Assembly

The simple clamp connection system enables rapid panel assembly, reducing labour costs and improving productivity on site.

Fast Assembly

The wide range of panel sizes allows contractors to form virtually any wall, column, or concrete structure using standard components.

High Quality Concrete Finish

The system utilises premium birch plywood facing, providing smooth concrete surfaces and excellent durability.

Long Service Life

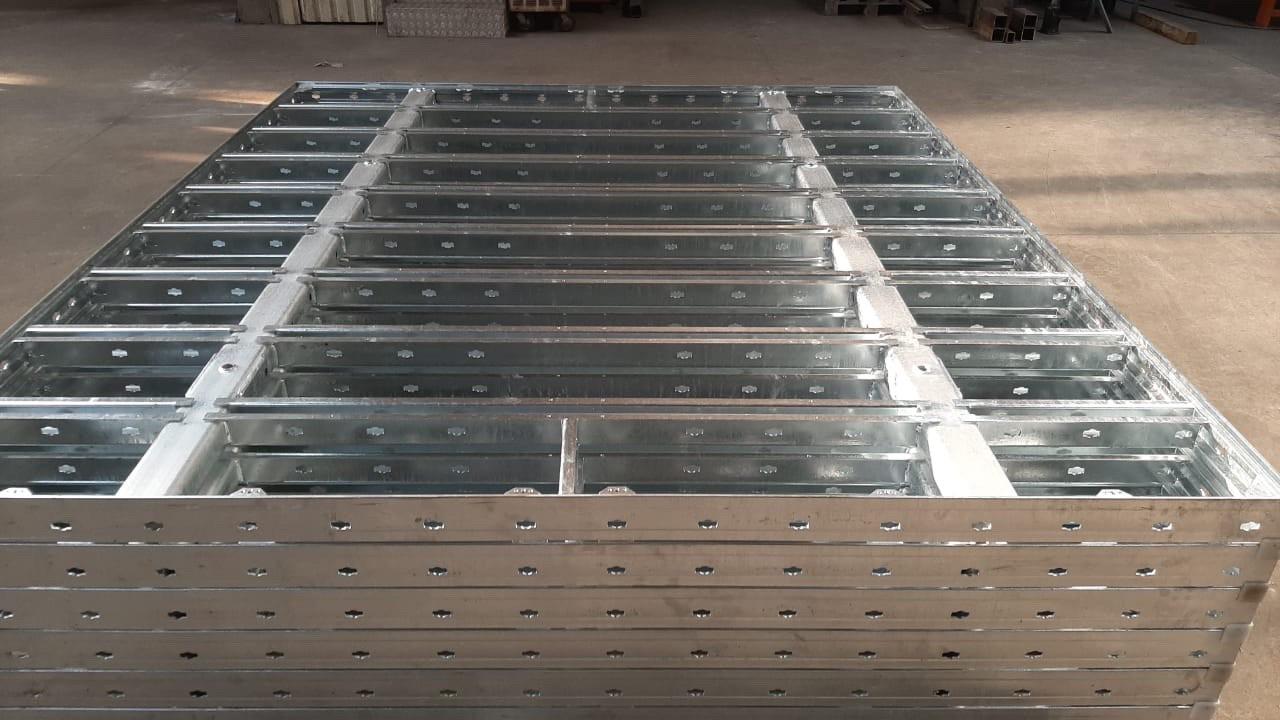

Manufactured from high-strength structural steel and available in either hot-dip galvanised or powder-coated finishes for maximum durability in demanding site conditions.

Leda Rapid™

LEDA RAPID™ is a versatile, lightweight,
Download Now

Get a Quotation

LEDA RAPID™ is a versatile, lightweight,

Leda Rapid™

Reduced Labour Costs

The lightweight design and simple connection system allow smaller crews to erect and strike formwork quickly and safely.

Technical Specification

Lightweight Modular Steel Frame Wall & Column Formwork

Frame Material

High Strength Structural Steel
Face Material
  • 15mm High Quality Birch Plywood
  • Optional Plastic-Faced Plywood Available
Finish Options
  • Hot Dip Galvanised (HDG)
  • Powder Coated
  • Painted Finish

Connection System

Quick-Acting Clamp System

Fresh Concrete Pressure

Up to 60 kN/m² Higher capacities may be achieved depending on panel configuration, tie spacing, pour rate, and project-specific engineering design.

Custom Manufacturing

Non-standard panel dimensions and bespoke configurations are available upon request.

Panel Range

LEDA RAPID™ panels are available in a wide range of sizes to maximise flexibility on site.

Standard Heights

  • 3000 mm
  • 2700 mm
  • 1500 mm
  • 1200 mm

Standard Widths

  • 900 mm
  • 750 mm
  • 600 mm
  • 450 mm
  • 300 mm
The modular dimensions allow simple planning and efficient use of materials while minimising the need for timber infill pieces.

Leda Rapid™

Custom Panel Sizes

In addition to the standard panel range, LEDA RAPID™ can be manufactured in custom dimensions to suit specific project requirements. Special panel widths, heights, corner configurations, and project-specific solutions can be supplied on request, allowing contractors to optimise formwork layouts, reduce infill requirements, and improve overall project efficiency.

Custom Options Include:

  • Special panel widths and heights
  • Project-specific corner solutions
  • Bespoke column formwork panels
  • Custom stop-end panels
  • Curved and radius formwork solutions
  • Special lifting and handling arrangements
  • Alternative plywood facings
  • Hot Dip Galvanised or Powder Coated finishes
Our engineering team can assist in developing customised solutions for unique construction challenges and complex project requirements.

Universal Panel System

LEDA RAPID™ Universal Panels provide maximum flexibility for
  • Adjustable columns
  • Stop ends
  • T-junctions
  • Wall intersections
  • Variable wall thicknesses

Available Heights

  • 3000 mm
  • 2700 mm
  • 1500 mm
  • 1200 mm
  • 900 mm
  • 750 mm

Available Widths

  • 900 mm
  • 750 mm

Leda Rapid™

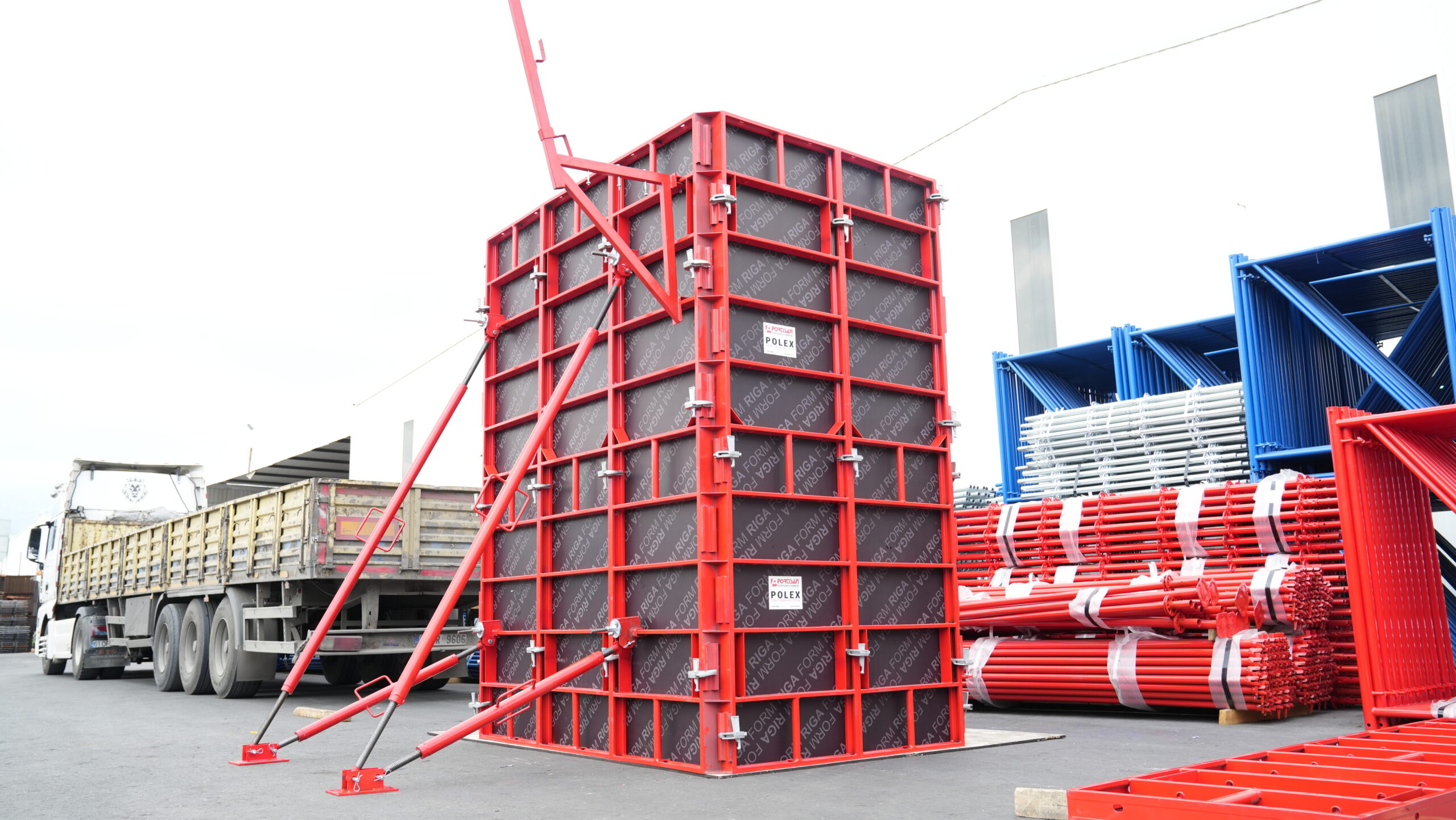

Column Formwork

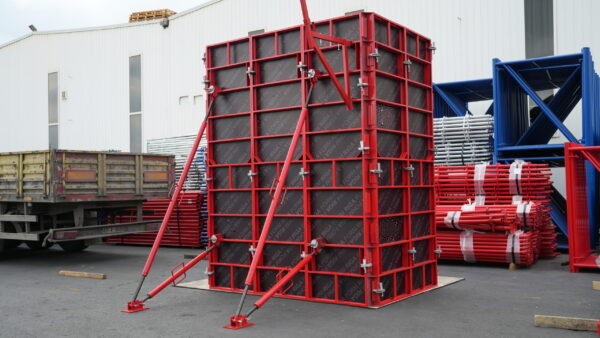

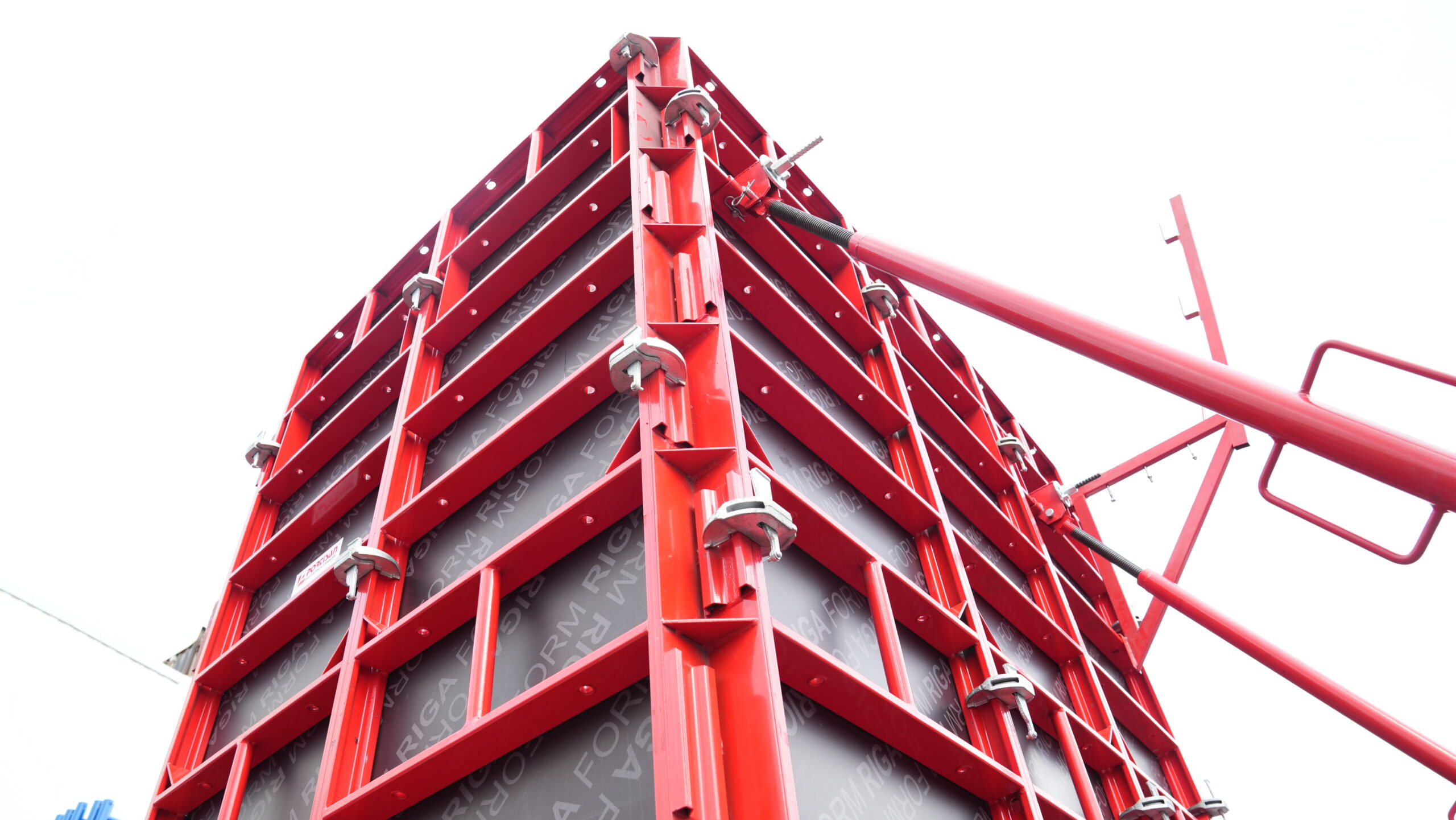

LEDA RAPID™ provides a highly flexible column-forming solution using standard and universal panels. The system can produce a wide range of square and rectangular column sizes without the need for special formwork components.
Typical Column Sizes
  • 150 × 150 mm
  • 200 × 200 mm
  • 250 × 250 mm
  • 300 × 300 mm
  • 400 × 400 mm
  • 500 × 500 mm
  • 600 × 600 mm
  • 700 × 700 mm
  • 800 × 800 mm
This flexibility makes the system ideal for repetitive structural construction and housing projects.

Corner Solutions.

LEDA RAPID™ includes a complete range of corner components.
  • Fixed Internal Corner
Provides fast formation of 90° internal wall corners.
  • Connection System
The LEDA RAPID™ Clamp System ensures:
  • Fixed External Corner

Provides fast formation of 90° external wall corners.

  • Fast assembly
  • Positive panel alignment
  • Secure connections
  • Reduced labour time
  • High-strength joints
  • Hinged Corner Panels
Allow formation of acute angles, obtuse angles, architectural features and variable geometry walls.
  • construction products
The clamp system allows panels to be connected quickly while maintaining accurate alignment and excellent concrete finishes.

Leda Rapid™

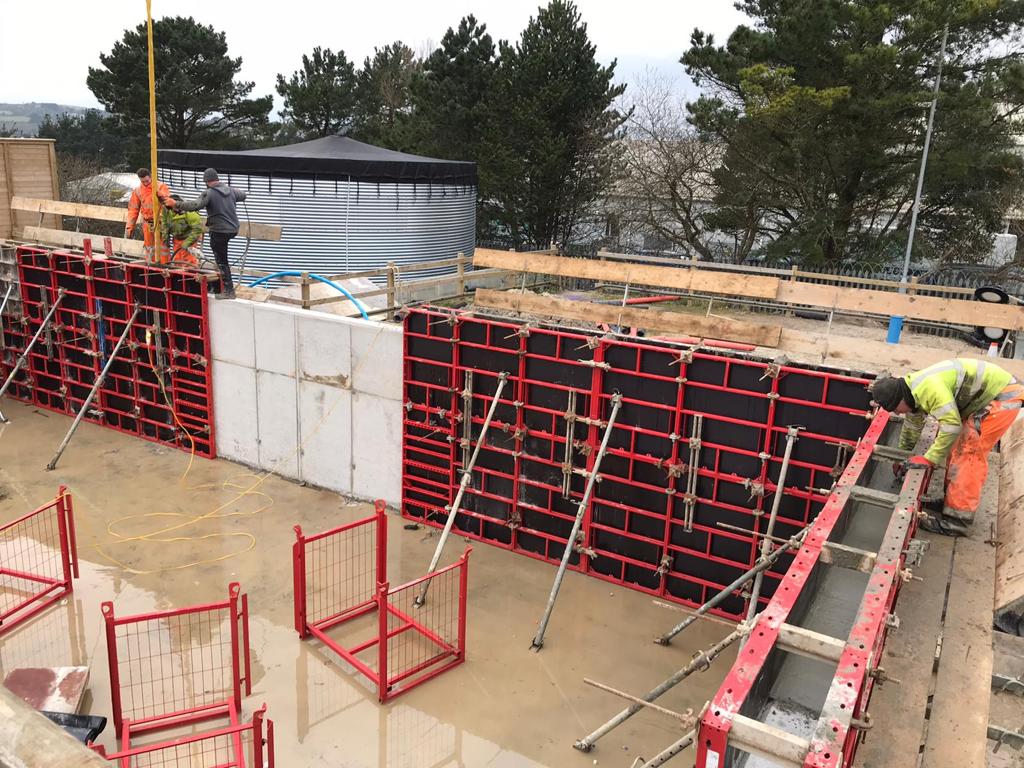

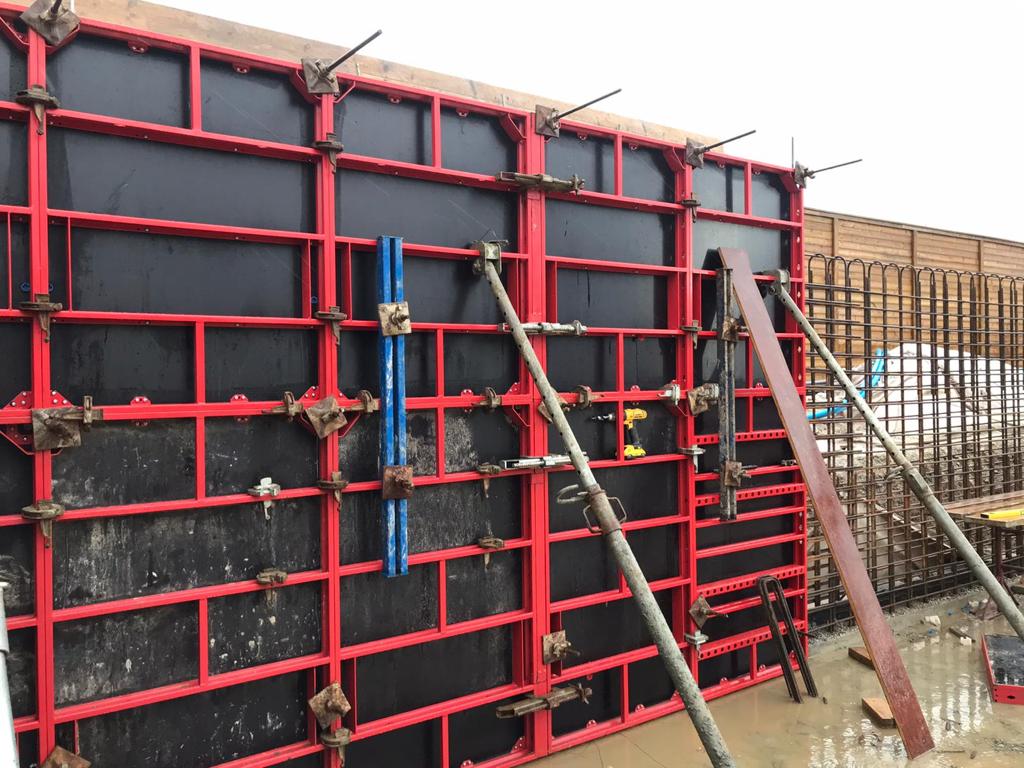

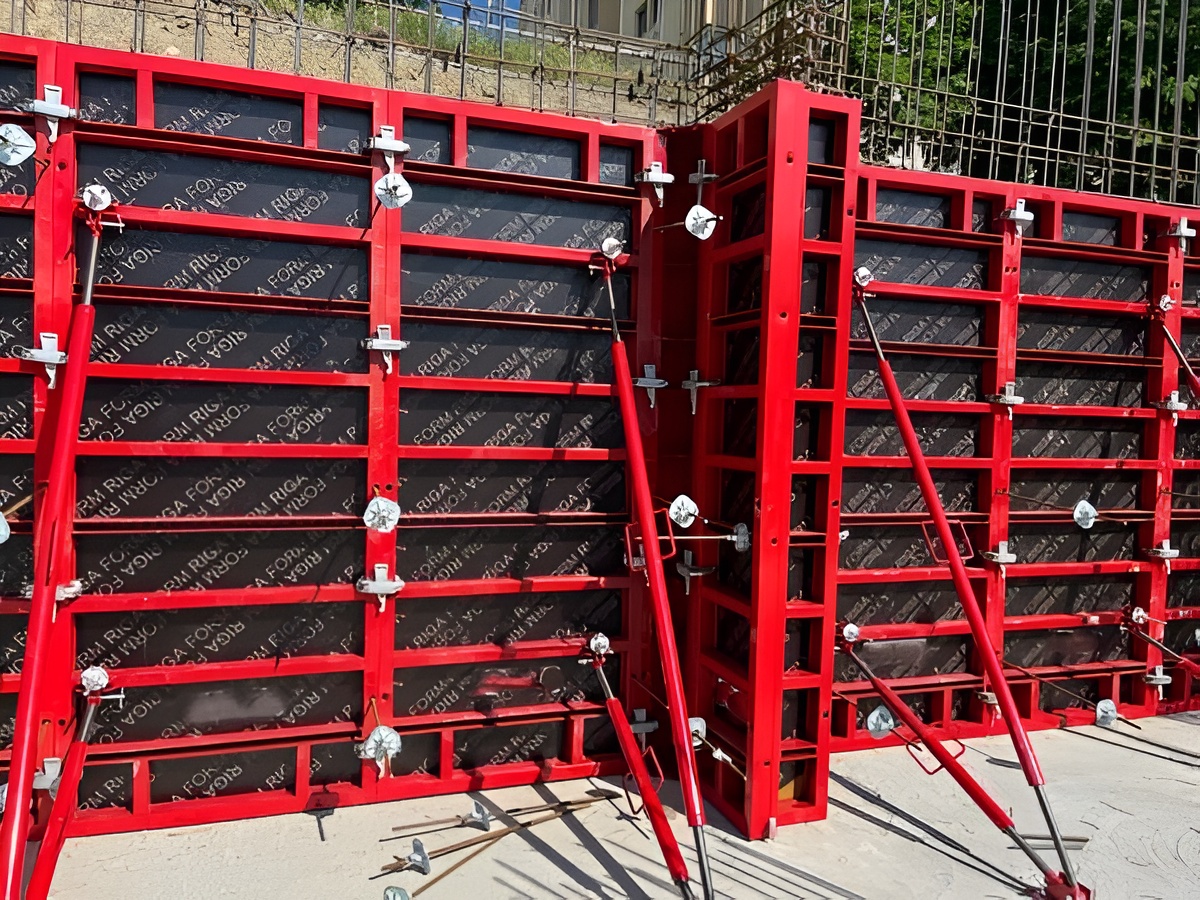

Alignment & Plumbing System

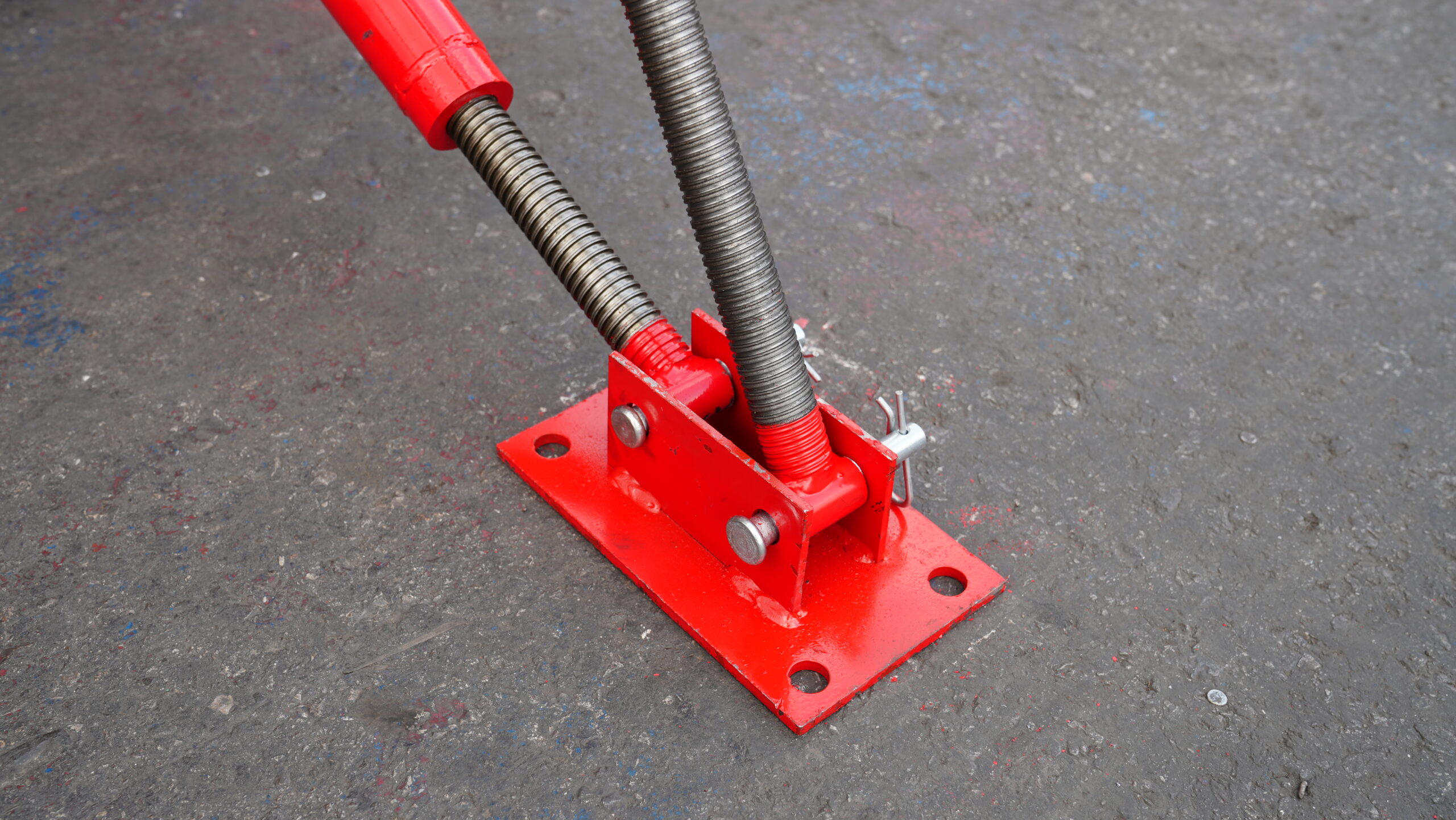

LEDA RAPID™ Push-Pull Props provide:
  • Accurate panel alignment
  • Fast plumbing adjustment
  • Increased stability during concrete placement
  • Safe erection procedures

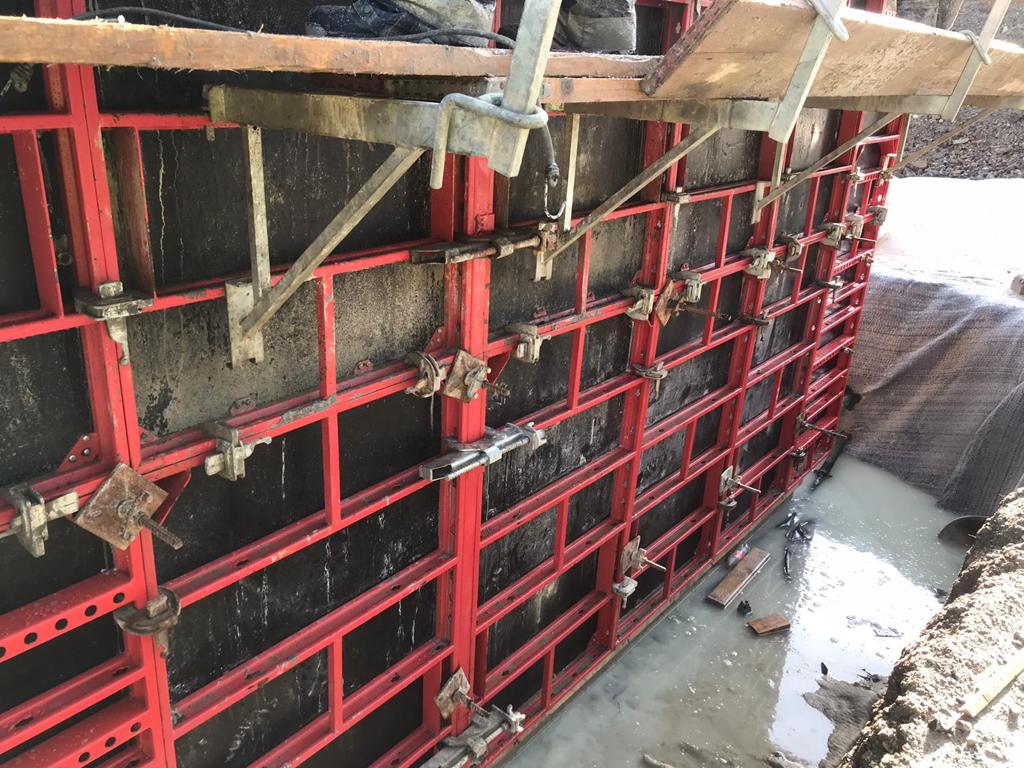

Working Platforms
Purpose-designed platform brackets allow safe installation of:
  • Concrete pouring platforms
  • Inspection platforms
  • Working platforms
Providing safe access during all stages of the concreting process.

Lifting System

Although LEDA RAPID™ is designed primarily as a handset system, crane lifting accessories are available for larger panel assemblies. The LEDA RAPID™ lifting hook provides safe and secure transportation of assembled formwork units around the site.

Residential Construction

  • Housing Developments
  • Apartment Buildings
  • Social Housing Projects

Commercial Construction

  • Schools
  • Hotels
  • Retail Buildings
  • Warehouses

Civil Engineering

  • Retaining Walls
  • Lift Shafts
  • Foundations
  • Water Structures

General Concrete Construction

  • Walls
  • Columns
  • Ground Beams
  • Structural Concrete Elements

Why Choose LEDA RAPID™™

LEDA RAPID™™ has been developed to provide contractors with a lightweight, versatile, and highly productive formwork system capable of delivering professional results across a wide range of concrete construction projects.

Combining durability, simplicity, flexibility, and cost efficiency, LEDA RAPID™™ offers an ideal solution for contractors seeking a modern handset wall and column formwork system.

LEDA RAPID™™
Fast. Flexible. Reliable.
Built for Modern Concrete Construction.
