LEDA PROP™ PLUS
HIGH STRENGTH.
LIGHTWEIGHT HANDLING.
PROFESSIONAL PERFORMANCE.
LEDA PROP™ PLUS is a professional heavy-duty adjustable steel prop system engineered for slab formwork, shoring, temporary support, and structural support applications.
Description
LEDA PROP™ PLUS is a professional heavy-duty adjustable steel prop system engineered for slab formwork, shoring, temporary support, and structural support applications.
Manufactured using high-quality galvanised steel construction, LEDA PROP™ PLUS provides reliable load-bearing performance, long service life, and safe handling for demanding commercial and infrastructure projects.
Designed using high-strength steel construction, LEDA PROP™ PLUS delivers excellent load performance while maintaining efficient handling weight for modern construction productivity.
Include Services
KEY ADVANTAGES
- Consistently high load capacity of minimum 20kN at any extension length
- Long service life due to galvanised finish
- Quick and efficient height adjustment using numbered pegging holes
- Low weight for easier handling and reduced labour fatigue
- Safe working with anti-drop-out latch and crush guard
- Reliable forged nut construction

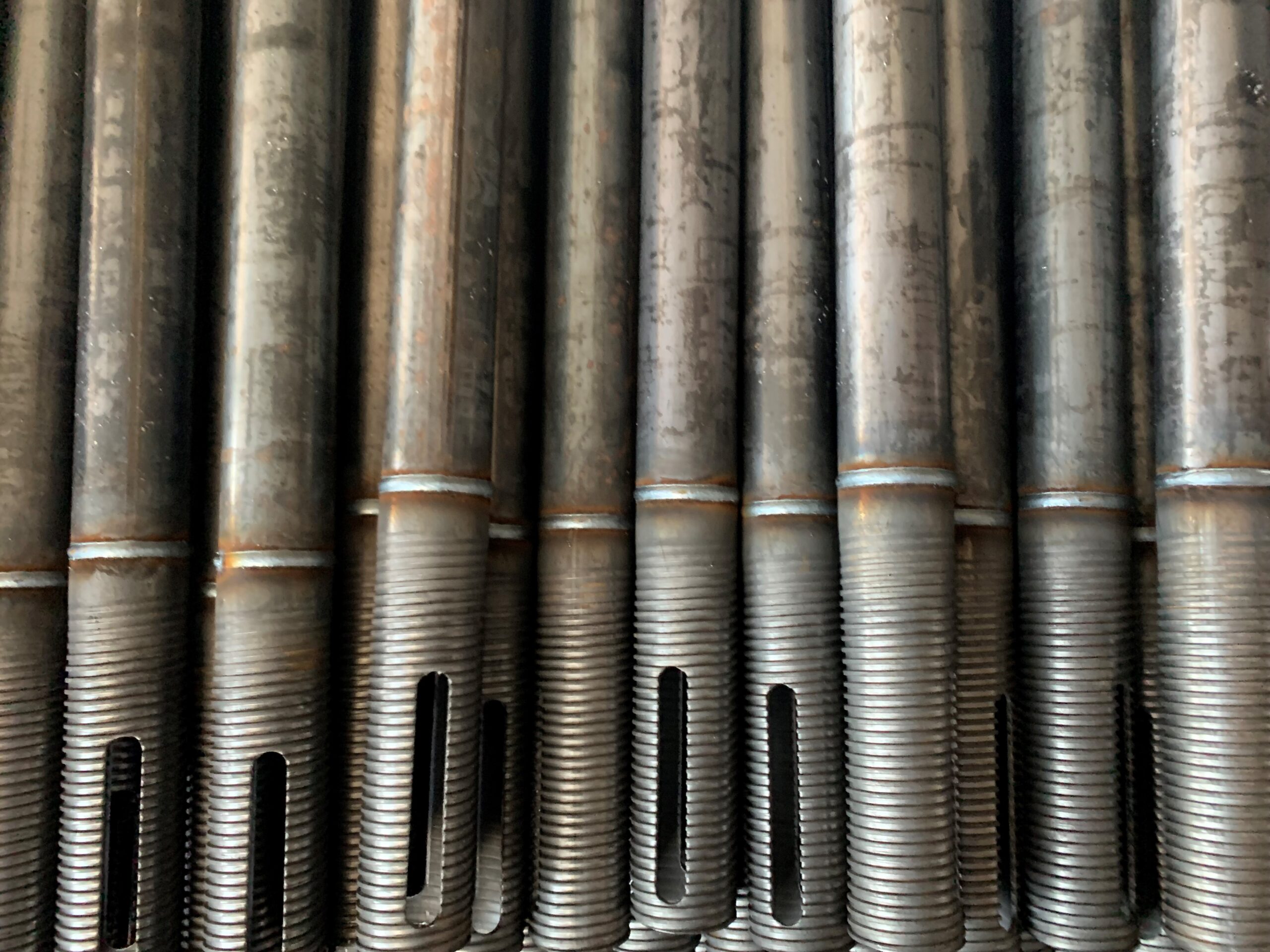

- Optimised thread pitch for fast release and adjustment
- Professional heavy-duty support solution
APPLICATIONS

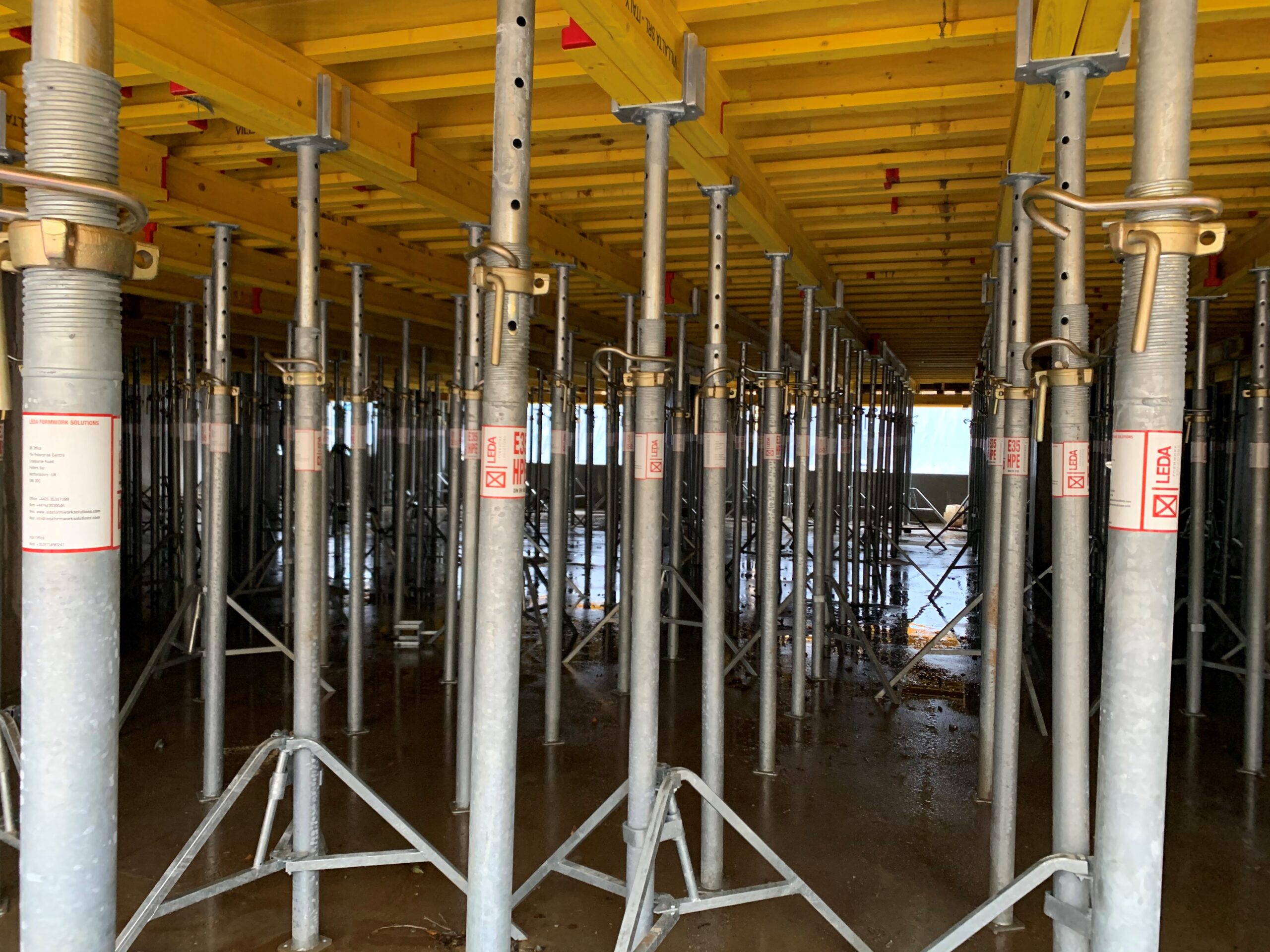

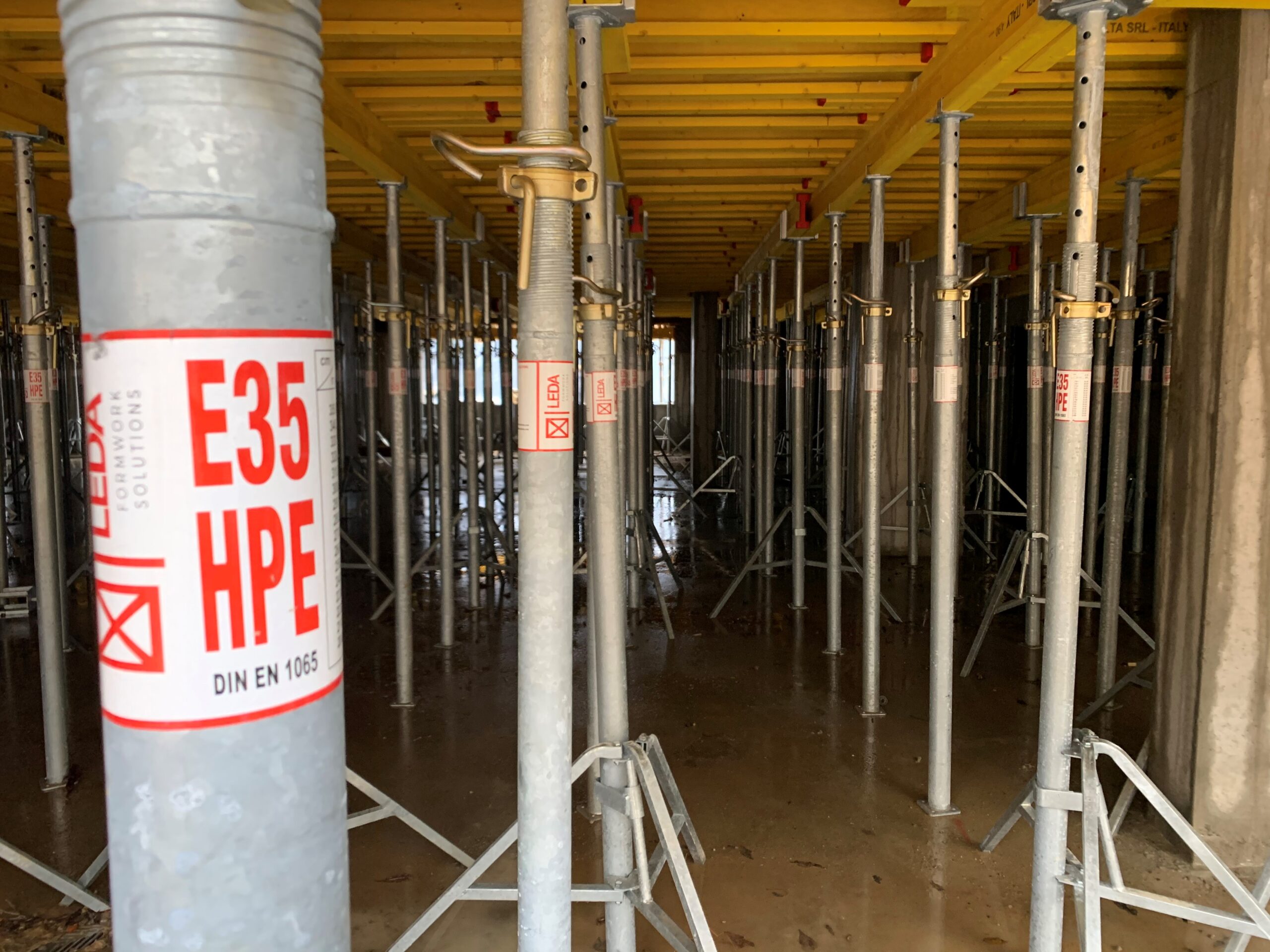

- Slab formwork support
- Temporary slab reshoring
- Beam support systems
- Commercial construction
- Residential construction
- Infrastructure projects
- Civil engineering support applications
- Heavy-duty shoring applications
TECHNICAL SPECIFICATIONS
- Certificate: Z-8.311-946
- Standard: EN1065 Class B/D or C/D
- Minimum Load Capacity: 20kN
- Maximum Load Capacity: Up to 36.7kN depending on extension length
- Galvanised steel finish

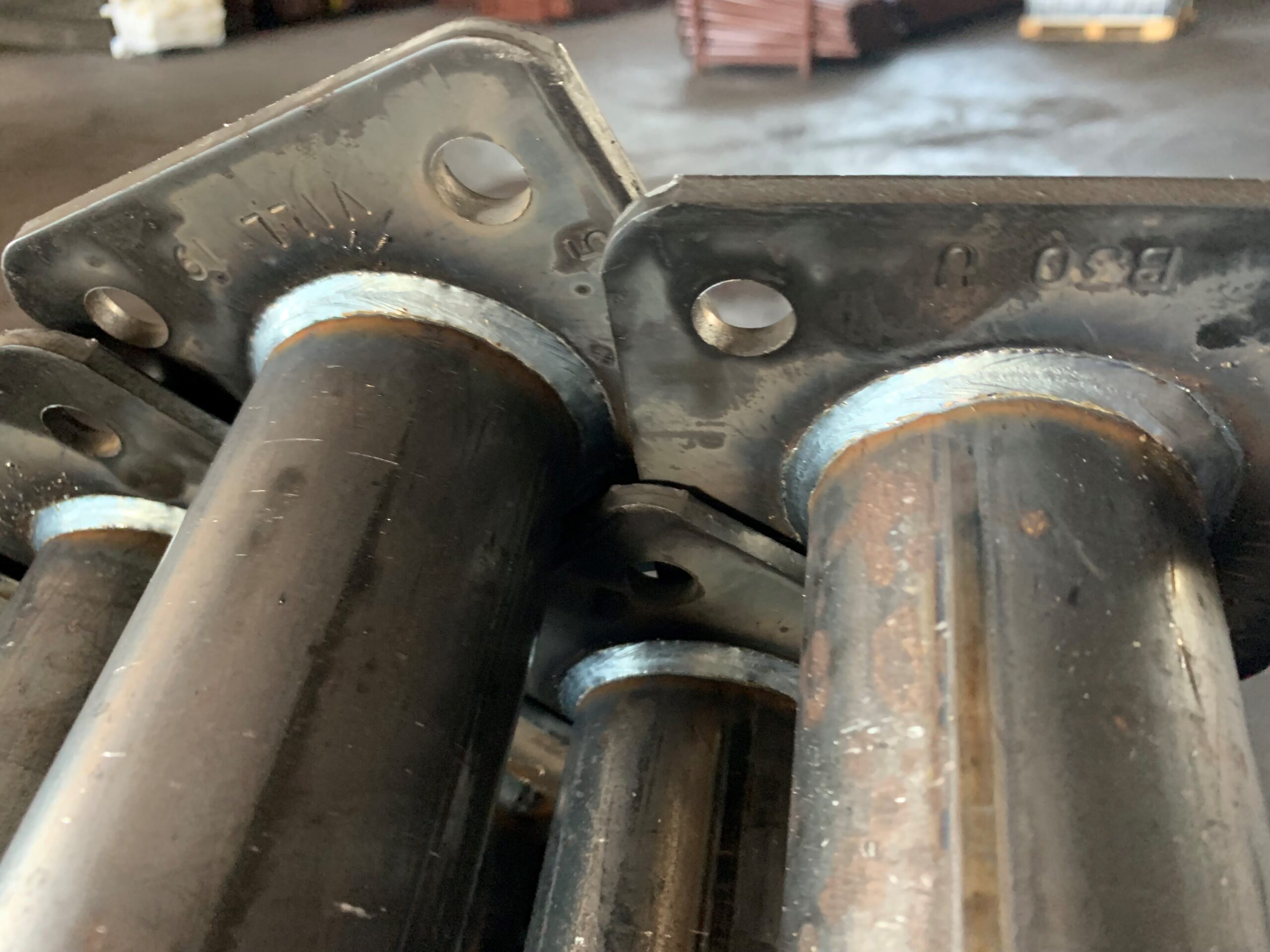

- 8mm head and foot plate construction
Get a Quotation
LEDA PROP™ PLUS is a professional heavy-duty adjustable
LEDA PROP™ PRODUCT CODING SYSTEM
Product Code Format: LPP – Prop Size
Example: LPP-300
| Prop Type | Extension Range | Approx. Weight | Load Capacity | LEDA Code |
|---|---|---|---|---|
| 250 | 148 – 250 cm | 11.5 kg | 20kN+ | LPP-250 |
| 300 | 173 – 300 cm | 11.5 kg | 20kN+ | LPP-300 |
| 350 | 198 – 350 cm | 11.5 kg | 20kN+ | LPP-350 |
| 400 | 223 – 400 cm | 11.5 kg | 20kN+ | LPP-400 |
| 450 | 298 – 550 cm | 11.5 kg | 20kN+ | LPP-450 |
PROFESSIONAL SITE BENEFITS
- Fast slab support setup and dismantling
- Reduced labour fatigue due to lightweight handling
- Long operational lifespan for repeated site use
- Reliable support performance for modern slab construction
- Suitable for hire fleets and heavy-duty contractor use
IMPORTANT SAFETY INFORMATION
- Perpendicular use only permitted.
- Foot plate must rest fully on a stable surface.
- Connecting props on top of each other is prohibited.
- Do not use props as barriers or guardrails.
- Not suitable as channel brace supports.
- Only use original fastening clamps and safety components.
LEDA PROP™ PLUS
Professional Heavy Duty Support Engineered for Modern Construction.
Prepared for LEDA Formwork
Engineered Construction Systems
